Taurus and Networking

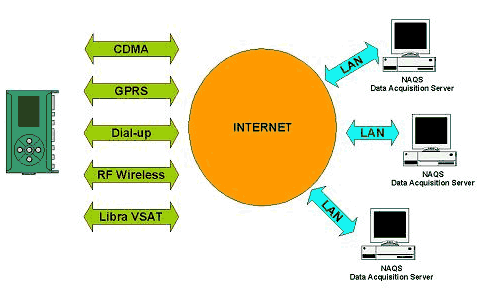

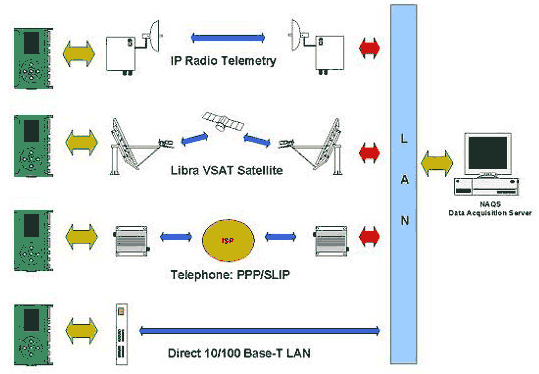

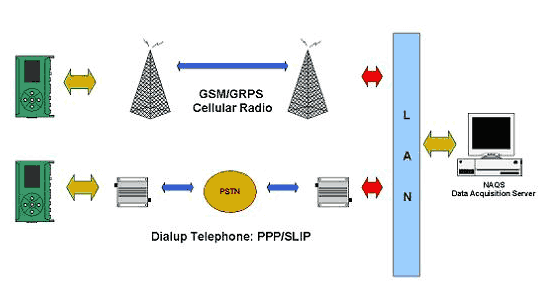

The Taurus portable has been designed with the capabilities to provide on-demand and real-time data networking with the most modern communication technologies. Supports: GSM/GRPS CDMA Libra VSAT Wireless Modem Internet Serial More...     Real-time communication networking telemetry options   On-Demand communication networking telemetry options Taurus Networking Options over the Internet                      Taurus specifications

Excellent quality data with 24-bit resolution and precise GPS timing Hand-held, all-in-one seismograph Long term deployments with over 600 days recording capacity Quick and convenient data retrieval using internal hot swap media Real-time data streaming for network applications Data output directly in industry-standard formats Find out more about Taurus Technical Specifications. Sensor inputs   Channels 3 standard, field upgradeable to 6 or 9 with addition of external Trident digitisers Sampling Simultaneous Input voltage range 40 V peak-to-peak differential (at gain 0.4) Nominal sensitivity 1 count/nV (gain 1) Hardware gain selection Software configurable 0.4, 1, 2, 4, 8 Software gain User configurable 0.001 to 100 High pass filter User configurable in mHz   Digitiser performance  Type Proprietary high order sigma-delta Digital filter 140dB attenuation at output Nyquist Filter type Linear phase (consult factory for other options) Dynamic range >140dB @ 100sps (max sine wave above shorted input) Sample rates 10, 20, 40, 50, 80, 100, 120, 200, 250, 500 sps   Sensor support   Sensor types Broadband active and short period passive Control lines 3; typically used for Cal enable, mass center and mass lock/unlock Logic level configurable; High: 5V, 12V,open drain. Low: 0, open drain Sensor power Supply power pass-through to sensor (9-36 VDC). Protected against short circuit. Sensor power can be switched on/off from user interface.   Instrument state-of-health   Taurus records continuous instrument state-of-health including:   Seismometer mass position Calibration enabled bit for each channel GPS state-of-health Instrument temperature Signal clip indication bit User accessible SOH 4 external SOH channels (12-bit) Configuration Complete configuration audit trail Communications Complete audit trail with cumulative good/bad packet counts Log file All software   Internal data storage    The following media options are available Compact flash Standard and industrial grade Type I/II.  1, 2, 4 and 8 Gbyte; Contact factory for larger capacity options. 1.8” ATA disk drive 40 GByte Recording capacity >600 days continuous recording, 3-channels @100sps on 30 GByte ATA drive (~40 days on 2 Gbyte Compact flash) Recording modes Continuous; write once or ringbuffer (overwrites oldest data) Continuous with STA/LTA trigger flags File system Ext3 (Linux) Drivers provided for Windows XP Compact flash readable on standard USB flash card reader Store format Nanometrics Store. Direct data output in MiniSEED and Nanometrics formats   Data retrieval   Media exchange Compact flash and ATA drives are field swappable. Flash readable on standard flash card readers Download interfaces Ethernet 10/100 Base-T   Real-time data communications Interfaces   Ethernet 10/100 Base-T Protocols UDP/IP unicast/multicast   HTTP (POST and GET)   RS-232 serial with IP drivers   Integrated user interface  LCD display 240*320 color graphics display with backlight Interface Web browser with five button navigation LED System status tri-color LED, Ethernet Communications LED, Media status LED. LCD display 240*320 color graphics display with backlight   Configuration   Taurus is configurable locally via the color LCD display and onboard browser or remotely using any web browser connected to the unit. Multiple unit configuration is achieved using an optional group configuration web server. Consult factory for further information.   Software   Operating system    Linux Applications software Nanometrics Next Generation NAQS Server with web interface   Connectors   Sensor connector 26-pin mil circular. Primary data channels, sensor control lines, protected/switchable sensor power, digital serial sensor management interface Serial/USB 19-pin mil circular Serial port 1; Rx, Tx, RTS, CTS, DTR, DSR, CD, RI Serial port 2; Rx, Tx, RTS,  CTS (data collection from serial devices) GPS  TNC, active antenna connection (3.3 V) Ethernet  4-pin mil circular, 10/100 Base-T User SOH  7-pin mil circular, 4 analog SOH inputs, SOH ref., 3.3V @10mA power NMXBus 4-pin mil circular, NMXbus data and power Power  3-pin mil circular, 9-36 VDC USB     USB Master/slave accessible behind media door   Power   Supply Voltage 9-36 VDC Power system Protected fuseless design with configurable low power disconnect, reverse protection and short circuit protection Ultra low power mode 650 mW @ 12Volts. 3-channel continuous recording @100sps, <100 usec timing precision, Compact flash recording Low power mode 1.1 Watt @ 12Volts; 3-channel continuous recording @100sps, continuous serial data acquisition (external geodetic GPS or equivalent), <100 usec timing precision, internal disk or Compact flash recording. Communications mode 1.5 Watt typical; 3-channel continuous recording @100sps, <100 usec timing precision, real-time Ethernet or serial communications Configuration mode <3.5 Watts. All systems operational including color graphics display. Low voltage disconnect                            Software configurable    Environmental   Operating temperature -20C to +60C base unit using Compact Flash storage +5C to +55C base unit using 1.8” ATA disk storage Storage temperature -40C to +70C Humidity 100% Length 264mm Width 147mm Depth 60mm Weight 1.8 Kg

Last Updated ( Wednesday, 18 January 2006 )

Accessing data from a Taurus

Data recorded on a Taurus can be recovered either via the 100/10 Base-T Ethernet port or by removing the media and plugging it directly into a computer system. In either case, a standard web browser provides the user with the option of downloading selected events, lists of events or the complete data set. The latest Taurus software supports direct data download in MiniSEED, ASCII, SEGY and SEISAN. Retrieving data from the Taurus is designed to be convenient and fast. A standard browser serves as the user interface for data download. When retrieving data from a single Taurus via a network, the browser connects directly to the Apolo web server software running on the Taurus.  When retrieving data from multiple Taurus or single or multiple Taurus media connected directly to a computer, the browser connects to a local web server which in turn connects to the Taurus or media. Whether downloading data from a single Taurus or media, or from multiple Taurus or media, the following options are available.     Ad hoc data requests All data in a specific time period. User set parameters include start time, end time/duration, channels and duration of each file. Data requests can be for seconds, minutes, hours, days or months of data. Single files or data volumes. When downloading data from multiple units, users can specify whether the data are downloaded as individual data files or data volumes, a data volume containing all stations for a specific time period Data are available in MiniSEED, SEISAN, SEGY or ASCII Event data downloads Single event downloads from one or more Taurus. User specifies event time and duration. Multiple, list driven event downloads from one or more Taurus. Event list includes start time and duration for each event Single event downloads from one or more Taurus based on event origin time, location and phase. Taurus calculates the event arrival time at the Taurus loaction based on the IASPEI travel time tables and extracts the appropriate data Multiple, list drive event downloads from one or more Taurus. Taurus calculates the event arrival time at the Taurus loaction based on the IASPEI travel time tables and extracts the appropriate data Taurus will accept event lists in the following formats IRIS Search ASCII NEIC EPIC Search compressed NEIC Fingerd
