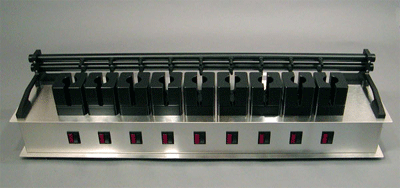

PermeGear V9-C Stirrer - Front View

( 경피제제 용출시험기, 피부흡수실험기, 경피흡수실험기 )

This stirrer is a 9-station magnetic stirrer for Franz Cells. It is 31" or 79cm long, the center-to-center distance between the cell holders is 2.6" or 6.6cm.

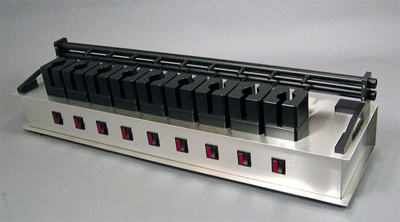

PermeGear V9-C Stirrer - Oblique View

This stirrer with black anodized aluminum cell holders is available in 110/120 volt and 220/240 volt configurations with power cords appropriate for the customers electrical supply.

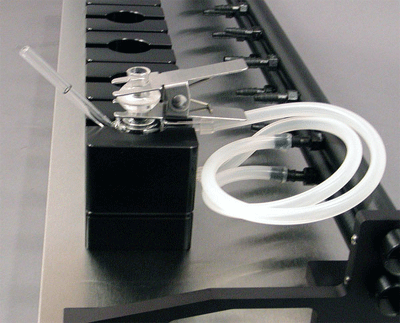

PermeGear V9-C Stirrer - End View with Franz Cell & Tubing

This photograph shows how to connect a jacketed Franz Cell to the water supply manifolds of any multi-cell PermeGear magnetic stirrer. Shutoff valves may be placed in each length of tubing if the user wishes to remove the cell and leave tubing sections attached to the arms of the cell's heating jacket. Another way to remove one or more cells is to place a length of tubing from the hose barb fitting in one manifold to the corresponding fitting in the other manifold. The cell in the photo is a jacketed Franz Cell with a flat ground joint, clear glass, and 5ml receptor volume. This cell is the most common Franz Cell in use today.

PermeGear V-Series Stirrers are made for use with our Franz cells. These units do not have temperature control of any kind. They have aluminum supply manifolds mounted toward the rear that connect to a user supplied water bath and pump or heater/recirculator.

DIFFUSION CELLS MUST BE ORDERED SEPARATELY!

Dimensions:

V3A is 20″/50.8 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 14 lbs/6.3 5kg

V3B is 20″/50.8 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 16 lbs/7.26 kg

V6-CA is 18″/45.7cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 16.5 lbs/7.48 kg

V6-CB is 18″/45.7cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 19.75 lbs/8.96 kg

V9-CA is 30.8″/78.2cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 26 lbs/11.79 kg

V9-CB is 30.8″/78.2cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 31 lbs/14.06 kg

V9A is 50″/127 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 32 lbs/14.52 kg

V9B is 50″/127 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 39 lbs/17.69 kg

*Height & Weight measurements are given without Franz Cells

Heater Circulator:
Working Temperature Range: 20ºC to 150ºC
Temperature Stability: +0.03ºC
Flow Rate: 15 L/min

Stirring RPMS:
120V 60Hz: 600 rpm +/- 10 rpm
230V 60Hz: 600 rpm +/- 10 rpm
230V 50Hz: 500 rpm +/- 10 rpm

Cells:
Orifice Diameter: + 0.5 mm, typically within + 0.3 mm
Volume: + 0.5 mL of stated, typically within + 0.3 mL
