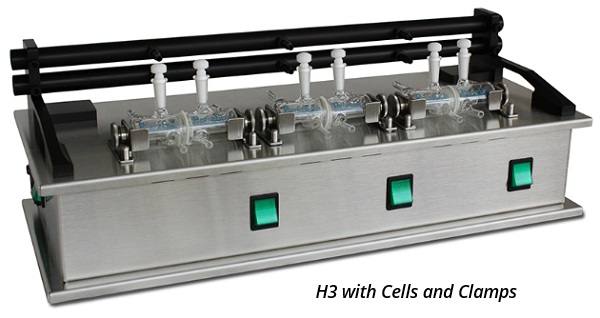

H3, H6, H9 Stirrer with Franz Cells and Cell Clamps

PermeGear H-Series Stirrers are made for use with our Side-Bi-Side cells. All but the H1 Stirrers have aluminum supply manifolds mounted toward the rear, which connect to a user-supplied heater/circulator. The long horizontal manifold tubes have removable hose barb fittings allowing the water jackets of the diffusion cells to be connected with latex tubing.

DIFFUSION CELLS MUST BE ORDERED SEPARATELY!

Dimensions:

H1C is 6″/15.2 cm wide x 6″/15.2 cm deep x 4″x 10.2 cm high & weight is 4.5 lbs/2.04 kg

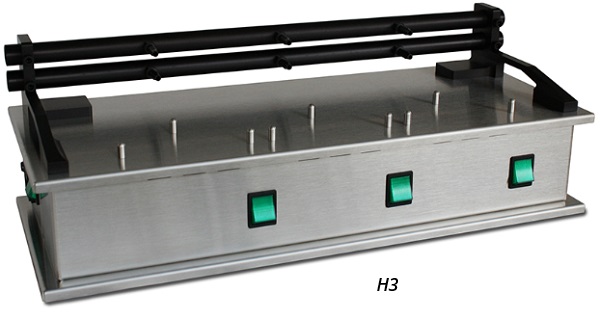

H3 is 20″/50.8 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 15.5 lbs/7.03 kg

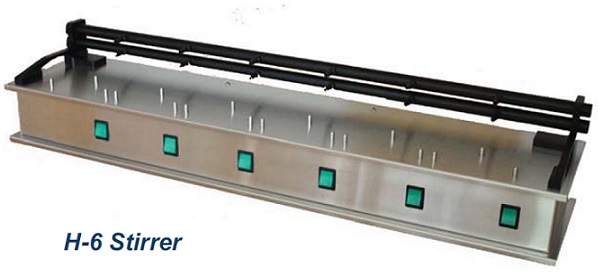

H6 is 35″/88 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 27 lbs/12.25 kg

H9 is 50″/127 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 34 lbs/15.42 kg

*Height & Weight measurements are given without Side-Bi-Side Cells

Heater Circulator:
Working Temperature Range: 20ºC to 150ºC
Temperature Stability: +0.03ºC
Flow Rate: 15 L/min

Stirring RPMS:
120V 60Hz: 600 rpm +/- 10 rpm
230V 60Hz: 600 rpm +/- 10 rpm
230V 50Hz: 500 rpm +/- 10 rpm

Cells:
Orifice Diameter: + 0.5 mm, typically within + 0.3 mm
Volume: + 0.5 mL of stated, typically within + 0.3 mL
