EpiOcular™ Technical Specifications ( MatTek )



  →  상품상세정보



EpiOcular™ Technical Specifications





주문은 최소 1개월 전에 하셔야 합니다.



I. Ordering

  1. New Orders: MatTek Scientists will consult on your application at no additional charge. It is STRONGLY RECOMMENDED that you have this consultation BEFORE placing your first order to help ensure that all media and accessories needed to perform your application are included in the initial order.
  2. ALL Tissue Orders: Please allow 3-4 weeks from order date to delivery of tissues. Please contact MatTek Customer Service for additional details.

II. Cells

  1. Type: Normal human epidermal keratinocytes (NHEK).
  2. Genetic make-up: Single donor.
  3. Derived from: Neonatal-foreskin tissue.
  4. Screened for: HIV, Hepatitis-B, Hepatitis-C, mycoplasma.

III. Medium

  1. Base medium: Dulbecco's Modified Eagle's Medium (DMEM).
  2. Growth factors/hormones: Epidermal growth factor, insulin, hydrocortisone and other proprietary stimulators of non-keratinizing epithelial differentiation.
  3. Serum: None.
  4. Antibiotics: Gentamicin 5 µg/ml (10% of normal gentamicin level).
  5. Anti-fungal agent: Amphotericin B 0.25 µg/ml.
  6. pH Indicator: Phenol red.
  7. Alternatives: Phenol red-free, antibiotic-free, anti-fungal-free, or hydrocortisone-free medium and tissue are available. Agents are removed at least 3 days prior to shipment.
  8. Maintenance medium: Most assays with EpiOcular™ are performed within 24 hours. However, for longer experiments, the tissue can be maintained in OCL-200-MM (identical to EpiOcular™ assay medium).

IV. Tissue

  1. Kit: Standard EpiOcular™ kit (OCL-200) consists of 24 tissues, each tissue 9 mm in diameter. (Tissue "kits" contain tissues, a small amount of culture medium, and plasticware; contact MatTek for specific kit contents.)
  2. Substrate: Non-coated, 9 mm ID single well tissue culture plate inserts are used (e.g. Millicell PCF, Nunc polycarbonate single well tissue culture plate inserts).
  3. Culture: At air liquid interface.

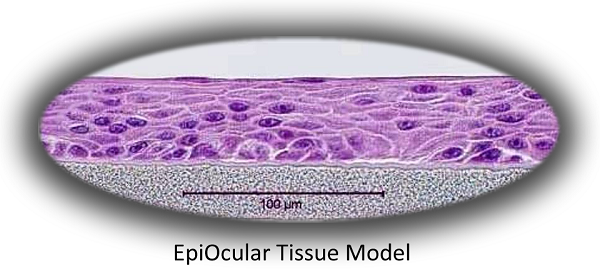

  4. Histology: 5-8 cell layers (basal layer to apical surface).
  5. Cornification: None.
  6. Lot Numbers: Tissue lots produced by each technician for each week are assigned a specific lot number. Typically, there are multiple lot numbers for any given week's tissue production. A letter of the alphabet is appended to the end of the lot number to differentiate between individual kits within a given lot of tissues. All tissue kits within a lot are identical in regards to cells, medium, handling, culture conditions, etc.
  7. Shipment: At 4°C on medium-supplemented, agarose gels in 24-well plate.
  8. Shipment day: Every Monday. Shipment on Thursday also possible upon special request.
  9. Delivery: Tuesday morning via FedEx priority service (US). Outside US: Tuesday-Thursday depending on location.
  10. Shelf life: Including time in transit, tissues may be stored at 4°C for up to 4 days prior to use. However, extended storage periods are not recommended unless absolutely necessary. In addition, the best reproducibility will be obtained if tissues are used consistently on the same day, e.g. Tuesday afternoon or following overnight storage at 4°C (Wednesday morning).
  11. Alternative tissues:

    OCL-200-ABF: Antibiotic-free tissue. For last 3 days of culture, gentamicin is omitted from culture medium. Customer receives 200 ml of OCL-200-ASY-AFAB medium.

    OCL-200-AFF: Anti-fungal-free tissue. For last 3 days of culture, Amphotericin is omitted from culture medium. Customer receives 200 ml of OCL-200-ASY-AFAB medium.

    OCL-200-AFAB: Antibiotic, anti-fungal-free tissue. For last 3 days of culture, gentamicin and Amphotericin are omitted from culture medium. Customer receives 200 ml of OCL-200-ASY-AFAB medium.

    OCL-200-EACH: Same as OCL-200 except only 1 tissue, not 24 tissues.

    OCL-200-FRZN-EA: OCL-200 tissue that has been subjected to 3 freeze/thaw cycles. Designed to serve as control for MTT auto-reduction test.

    OCL-212: Half kit (12 cultures instead of standard 24).

    OCL-606: Same as OCL-200 except 6 tissues per kit, each tissue cultured in a larger cell culture insert (22 mm diameter).

V. Quality Control and Sterility

  1. Visual inspection: All tissues are visually inspected and if physical imperfections are noted, tissues are rejected for shipment.
  2. End-use testing: Tissues are exposed to 0.3% Triton X-100 for 5, 20, and 60 minutes. The time of exposure required to reduce the tissue viability (ET-50) using the MTT assay is determined (See MatTek EpiOcularTM ET-50 protocol) for each lot of tissue. ET-50's must fall within the range of the 1996 EpiOcular™ database: 12.2-37.5 minutes. ET-50's in customers' labs are often very similar to MatTek results.
  3. Sterility: All media used throughout the production process is checked for sterility. Maintenance medium is incubated with and without antibiotics for 1 week and checked for sterility. The agarose gel from the 24-well plate used for shipping is also incubated for 1 week and checked for any sign of contamination.
  4. Screening for pathogens: All cells are screened and are negative for HIV, hepatitis B and hepatitis C using PCR. However, no known test method can offer complete assurance that the cells are pathogen free. Thus, these products and all human derived products should be handled at BSL-2 levels (biosafety level 2) or higher as recommended in the CDC-NIH manual, “Biosafety in microbiological and biomedical laboratories,” 1998. For further assistance, please contact your site Safety Officer or MatTek technical service.
  5. Notification of lot failure: If a tissue lot fails our QC or sterility testing, the customer will be notified and the tissues will be replaced without charge. Because our QC and sterility testing is done post-shipment, notification will be made as soon as possible (Under normal circumstances, ET-50 failures will be notified by Wednesday 5pm; sterility failures will be notified within 8 days of shipment).



EpiOcular Dimension Information



Part
Number

Ship
Day

Tissue
 Diameter

Culture
Area

Number of Cultures

OCL-200

Monday

8 mm

0.6 cm2

24

OCL-200-FRZN

Monday

8 mm

0.6 cm2

1

OCL-212

Monday

8 mm

0.6 cm2

12

OCL-606

Monday

22 mm

4.2 cm2

6

OCL-EACH

Monday

8 mm

0.6 cm2

1

Notes:
For phenol red-free medium add suffix –PRF to part number
For antibiotic-free medium add suffix –ABF to part number
For anti-fungal-free medium, add suffix –AFF to part number
For anti-fungal-free, anti-biotic-free medium, add suffix –AFAB to part number
For hydrocortisone-free medium, add suffix –HCF to part number
