PETIO
Digital Radiography System for Laboratory
Introduction
■ PETIO is a Digital Radiography system by CCD detector for Veterinary Hospital.

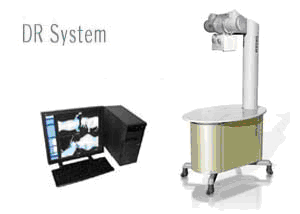

■ PETIO includes X-ray detector, table, X-ray source, LCD monitor and computer with
software.
■ Economical usage, no use X-ray film processing, save the cost of film and development.
■ Present the powerful X-ray Images and stable operation.
■ Using the one CCD unit, No artifact by tiling.
■ Designed user friendly and for safety.
Features
■ Using the high resolution and wide dynamic range CCD sensor.
■ High Resolution X-ray Image at low dose.
■ Synchronize the X-ray exposure with Image acquisition.
■ CCD Full-well Capacity ; 100,000 electrons
■ Detector A/D conversion ; 16bits
■ Detector cooling ; -30 degree ℃ delta
■ X-ray source ; Rotating Tube(125kVp, 400mA)
■ Image storage capacity ; more than 100,000 images.
■ Automatically data backup system.
■ Easy to use the software, which can be upgraded by internet.
■ Database supports patient registration and query images.
■ SVCLⓇ (Size Variable Contrast Lens).
■ Output image file format ; *.jpg or others.
■ Protect veterinarian’s eyes and thyroid against scattering x-ray
with lead acryl windows.
| 1. Detector |
2. X-ray |
| - High Sensitive CCD with Scintillator |
- Tube Focal Spot : 1.0/2.0mm |
| - 16 bit data processing |
- 40~125kVp, Max. 400mA, 32kW |
| - Image Size : 10" x 14" |
|
| - Pixel Number : Max. 1k x 1.5k |
|
|
|
|
| 3. Workstation |
4. Software |
| - CPU : Pentium 3.2G |
- Auto Optimization, Histogram |
| - RAM : 1G |
- Filp Horizontal/Vertical, |
| - Hard Disk : 250G x 2EA (RAID) |
- Image Zoomingm Panning |
| - Monitor : 1600 x 1200 LCD |
- Contrast Lens, Gamma Correction |
|
|
- Image Rotateing |
| |
- Measurement(Point to Point) |
|
|
|
|
|
| |
|
|
