Digital Radiography System for Veterinary Hospital VXR-6M

         동물용 디지털엑스레이 ( DIGITAL X-RAY )

Introduction

In recent veterinary practice, Digital Radiography (DR) is rapidly becoming the new standard to replace the traditional film-based x-ray technology. VXR is a Digital Radiography system based on CCD detector for Veterinary Hospital use. VXR is designed to provide customers with the high performance DR equipment at affordable price. VXR uses a very stable detector compared to CR and Flat panel detectors. Furthermore VXR provides high quality images for all diagnostic purposes.

The wide dynamic range of the detector allows the user to adjust the brightness and contrast in the image effectively. Consequently much more diagnostic Informa­tion from the image can be obtained. The image software, Maxxvue, in VXR has been widely used in the veterinary DR systems already and has an excellent reputation in the market.

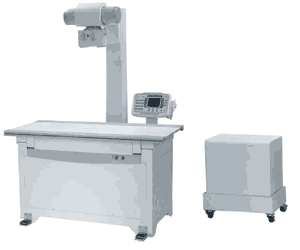

The x-ray generator mounter and table are designed to enable the easy washing of the room floor on which the system is installed. Considering the generally inadequate input power at most of the veterinary clinics, the x-ray generator is designed to output a high rating at a long exposure time, which makes possible to obtain an excellent quality image for even big animals. With the remote diagnostic function of the x-ray genera­tor, customer service can be provided quickly wherever the VXR is installed.

Feature

□ CCD Detector.
    ▪ One CCD with specially dedicated optics for high spatial resolution.
    ▪ Excellent dynamic range with 16-bit digitization.
    ▪ High throughput radiography examination.
    ▪ Very stable operation and long term life time.

□ Most suitable software.
    ▪ Comprehensive image processing by optimal tissue Equalization, image sharpning and adjustment of brightness.
    ▪ Image process parameters are selectable to maximize the preset algorithms.
    ▪ Full size image display within 10 seconds.
    ▪ DICOM 3.0 standard compliance.
    ▪ Preview function.
    ▪ Easy to learn and use.

□ Superior High-Frequency X-ray Generator.
    ▪ Superior performance.
            -Accuracy : kV < ±(1%+1kV), mA < ±(3%+1mA), time < ±(1%+0.5ms)
            -Reproducibility(Coefficient of Variation)
             : kV<0.002, time<0.002, mAs<0.005
            -Linearity (Coefficient of linearity ) : CL < 0.01
    ▪ Real-time monitoring self diagnosis and error code display.
    ▪ Tube anode HU display & protection, overload & housing overheat protection.

□ Customer survice.
    ▪ Remote diagnosis via internet connection.
    ▪ Qick response upon customer’s call.

For more information, please contact us Lab365@Lab365.co.kr
