PermeGear V-Series Stirrers are made for use with our Franz cells. These units do not have temperature control of any kind. They have aluminum supply manifolds mounted toward the rear that connect to a user supplied water bath and pump or heater/recirculator.

DIFFUSION CELLS MUST BE ORDERED SEPARATELY!

Dimensions:

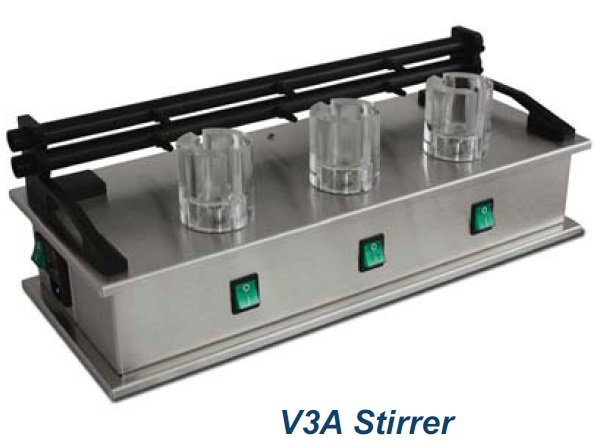

V3A is 20″/50.8 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 14 lbs/6.3 5kg

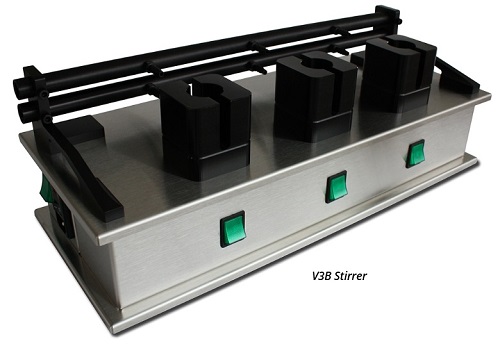

V3B is 20″/50.8 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 16 lbs/7.26 kg

V6-CA is 18″/45.7cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 16.5 lbs/7.48 kg

V6-CB is 18″/45.7cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 19.75 lbs/8.96 kg

V9-CA is 30.8″/78.2cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 26 lbs/11.79 kg

V9-CB is 30.8″/78.2cm wide x 8″/20.3cm deep x 7.25″x 18.4cm high & weight is 31 lbs/14.06 kg

V9A is 50″/127 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 32 lbs/14.52 kg

V9B is 50″/127 cm wide x 8″/20.3 cm deep x 7.25″x 18.4 cm high & weight is 39 lbs/17.69 kg

*Height & Weight measurements are given without Franz Cells

Heater Circulator:
Working Temperature Range: 20ºC to 150ºC
Temperature Stability: +0.03ºC
Flow Rate: 15 L/min

Stirring RPMS:
120V 60Hz: 600 rpm +/- 10 rpm
230V 60Hz: 600 rpm +/- 10 rpm
230V 50Hz: 500 rpm +/- 10 rpm

Cells:
Orifice Diameter: + 0.5 mm, typically within + 0.3 mm
Volume: + 0.5 mL of stated, typically within + 0.3 mL
