Dual Wireless Neural Headstage Systems

Headstage Features

•.Wireless operations across 3 meters

•.Operates in unlicensed radio band below FCC limits

•.Available with 4, 15 and 31 radio channel systems

•.Rechargeable battery power

•.Bandpass filtering per channel .8Hz to 7kHz typical

•.50kHz sampling rate per channel

•.Same cage or adjacent cage location proximity

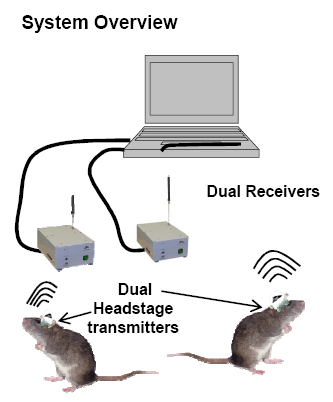

Triangle BioSystems, Inc. has developed a dual wireless neural headstage system that allows

researchers to continuously and simultaneously monitor two feely moving animals in the same or

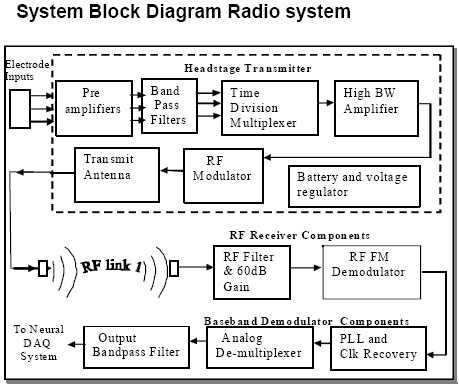

adjacent cage. Each of the headstage systems have different RF carrier frequencies and radio

components that allow any combination of 4, 15 and 31 channel wireless systems to work side by side

within the same transmit range of 3 meters. For example, two 31 channel systems, or one 15 channel

and one 4 channel, or two 4 channel systems can operate together in the same cage without interfering

with each other. For the first time 2 animals can be simultaneously monitored in the same cage without

having to worry about tangled tethered or commutator connections.

Mechanical Specifications

All headstage and receiver mechanical specifications of the dual radio system are the same as the single radio system specification. In other words, there is no weight, height, length or width difference between the dual radio headstages and single radio headstage.

Please refer to the specifications of the appropriate headstage for detail mechanical information of the each of the headstages.
