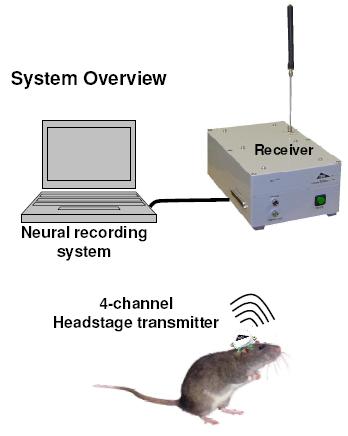

Triangle BioSystems, Inc. has developed a high channel count

wireless neural headstage system that allows researchers to

continuously and simultaneously monitor up to 4 neural electrodes.

No longer do experiments have to be constrained by wiring a test

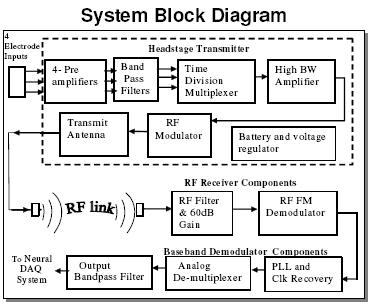

subject to the recording system. The complete system is

comprised of a wireless headstage transmitter with integrated

battery, RF signal receiver/baseband demodulator, power supply

and all required cables. With an effective range of 3 meters, this

system provides a wireless connection between the implanted

electrodes and the data recording system.

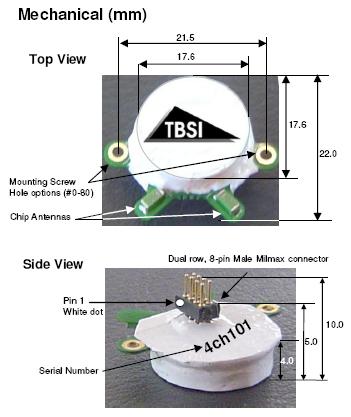

In the development of this system, TBSI utilized custom ASIC

technology and proprietary radio design techniques to provide high

channel count functionality in a wireless headstage that is both

small and light weight (2.8 grams). This design also incorporates

neural preamplifier circuitry to create an extremely compact and

powerful transmitter.

Ordering Information

4-Channel Wireless Headstages
Part No.	Battery Operating Time	Battery Type	Connector Pins
4RadioHS_050_8	1.0 hour	Internal	8

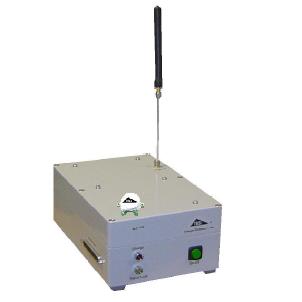

4NeuroRadioRX	Wireless Receiver/Demodulator
