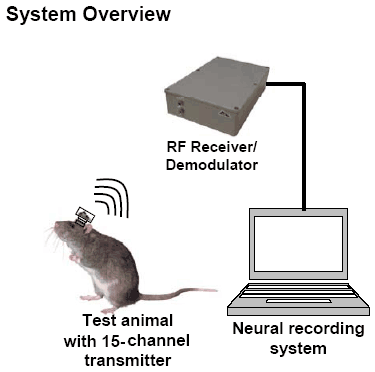

System Overview

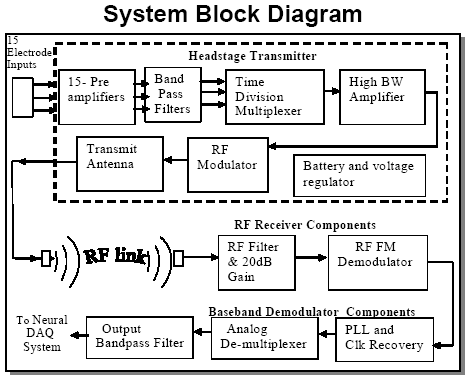

Dail Scientific Trade Co. has imported a high channel count wireless neural headstage system that allows researchers to continuously and simultaneously monitor up to 15 neural electrodes. No longer do experiments have to be constrained by wiring a test subject to the recording system. The complete system is comprised of a wireless headstage transmitter with integrated rechargeable battery, RF signal receiver/baseband demodulator, power supply and all required cables. With an effective range of 1.5 meters, this system provides a wireless connection between the implanted electrodes and the data recording system.

In the development of this system, TBSI utilized custom ASIC technology and proprietary radio design techniques to provide high channel count functionality in a wireless headstage that is both small and light weight (<10 grams). This design also incorporates neural preamplifier circuitry to create an extremely compact and powerful transmitter.
