Mammography QC Package (029-15)




  ¡æ  »óÇ°»ó¼¼Á¤º¸





Mammography QC Package

Insure your images are at their very best


Model 029-15




The CIRS Model 029-15 Mammography Quality Control Package has the tools a technologist needs to implement a comprehensive quality control program and insure their department is producing the best possible images and diagnostic information.

Standard tests include evaluation of processor performance, fixer retention, image quality, film screen contact and paddle compression. The package includes items necessary for implementing a Mammography QC program in compliance with FDA / MQSA
regulations, ACR recommendations
and state requirements.

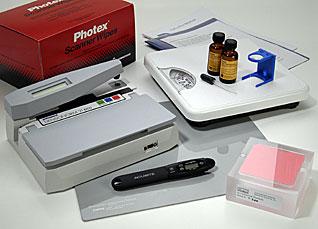

Set Includes;
Lint free wipes
Digital thermometer
Analog Scale
Hypo test kit
Film contact test tool
Phantom Model 015
Sensitometer
Densitometer
High impact carry case


Optional Accessories
Program Manual for accreditation program sponsored by the American College of Radiology

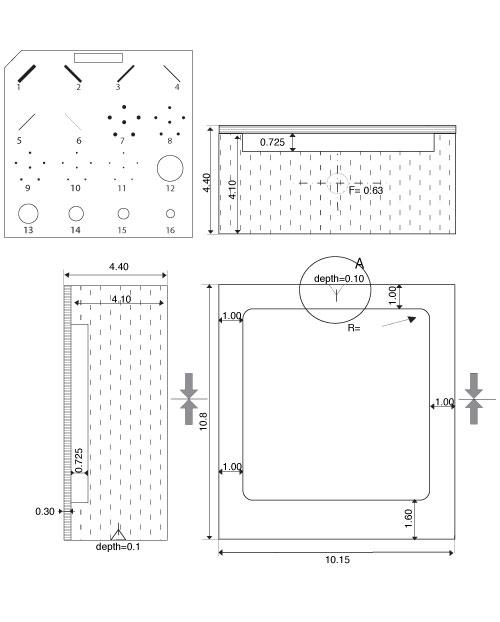

Phantom
Wax Insert

FIBERS
1. 1.56 mm nylon fiber
2. 1.12 mm nylon fiber
3. 0.89 mm nylon fiber
4. 0.75 mm nylon fiber
5. 0.54 mm nylon fiber
6. 0.40 mm nylon fiber

SPECKS
7. 0.54 mm AI2O3 speck
8. 0.40 mm AI2O3 speck
9. 0.32 mm AI2O3 speck
10. 0.24 mm AI2O3 speck
11. 0.16 mm AI2O3 speck

MASSES
12. 2.00 mm (thickness) mass
13. 1.00 mm (thickness) mass
14. 0.75 mm (thickness) mass
15. 0.50 mm (thickness) mass
16. 0.25 mm (thickness) mass

Phantom
Body
MATERIAL: acrylic
LENGTH: 10.8 cm
WIDTH: 10.15 cm
DEPTH: 4.4 CM
